ASME Class 150

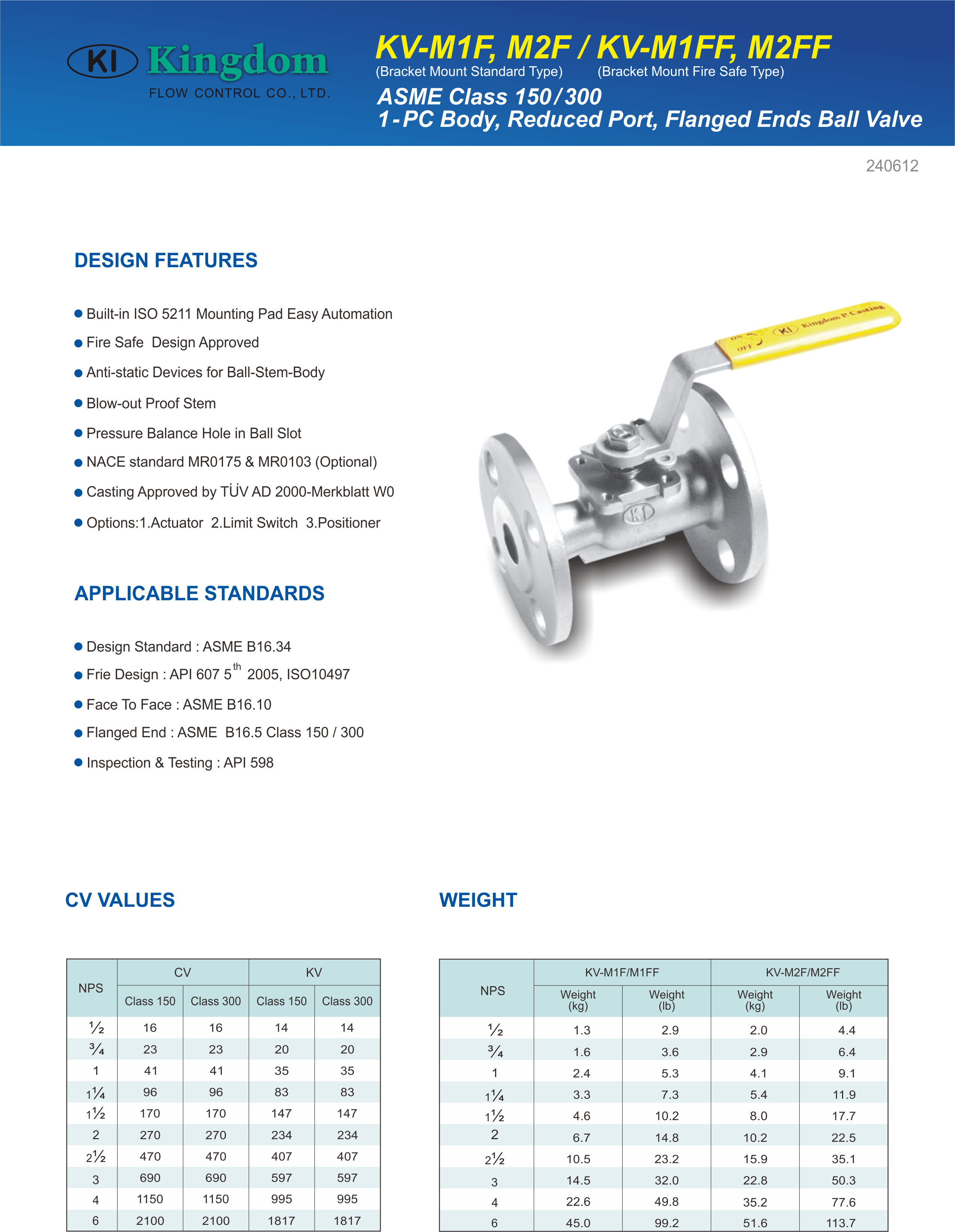

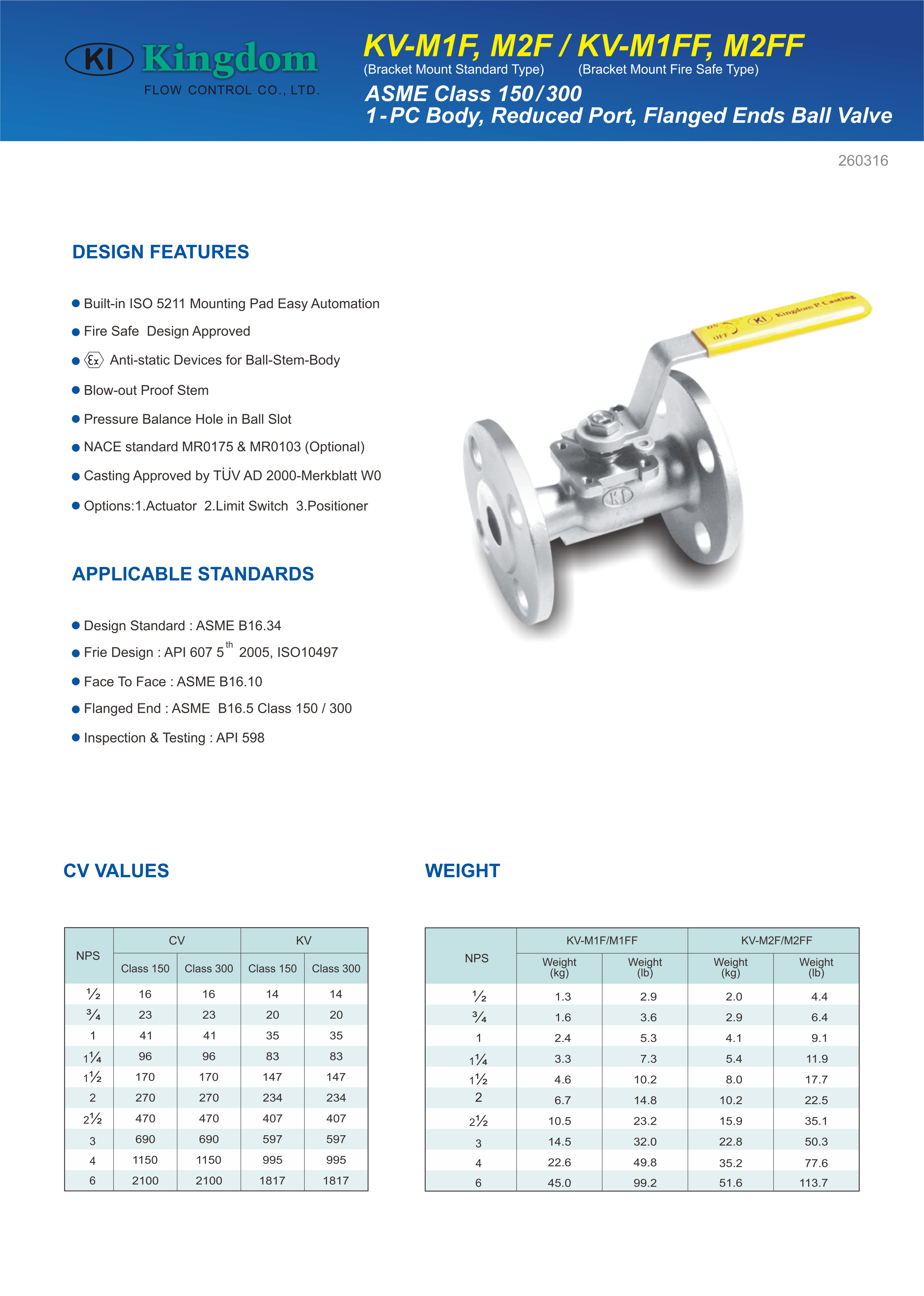

KV-M1F,KV-M1FF(Fire Safe Type)
ASME Class 150
1-PC Body, Flanged Ends, Reduced Port

Download

  • Reduced Port
  • ISO 5211 Mounting Pad
  • TFM 1600 Seats
  • Size 1/2” ~ 6”
