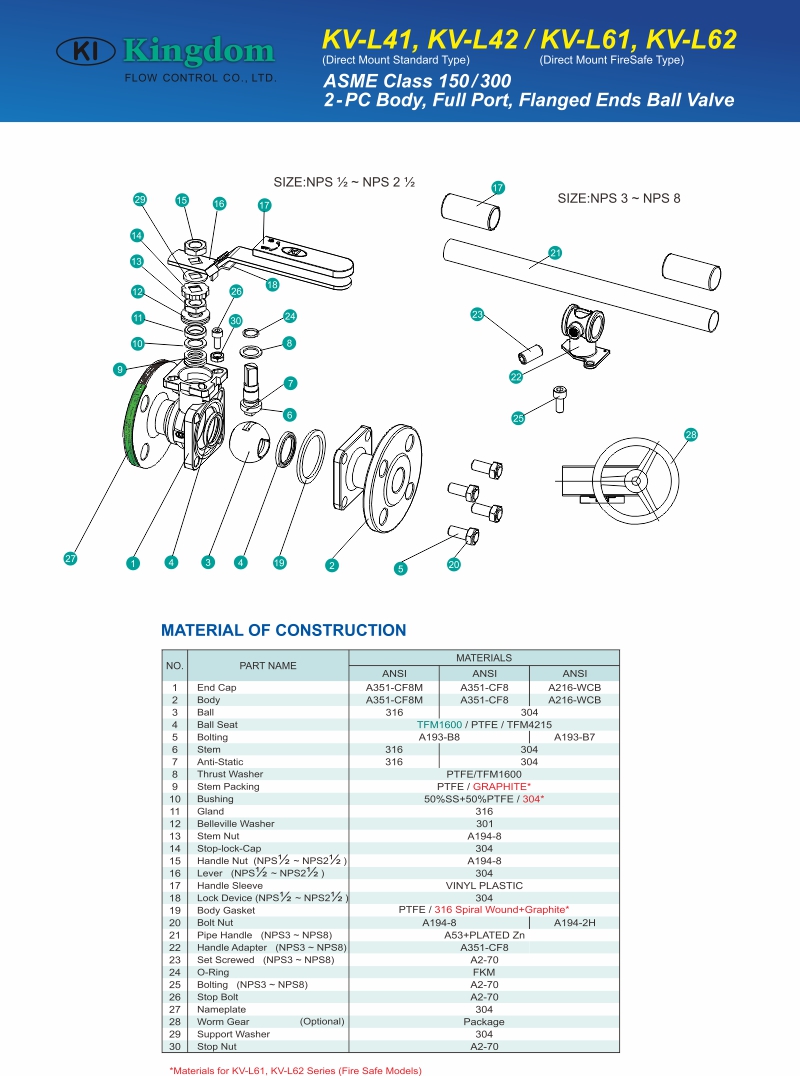

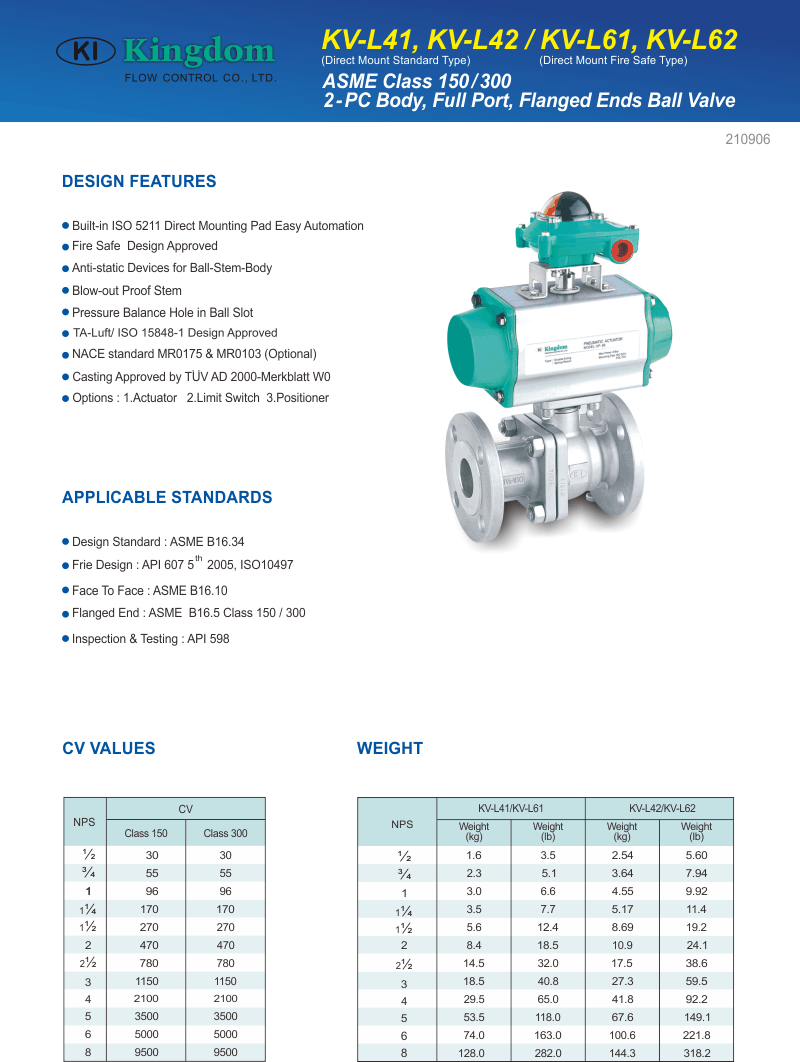

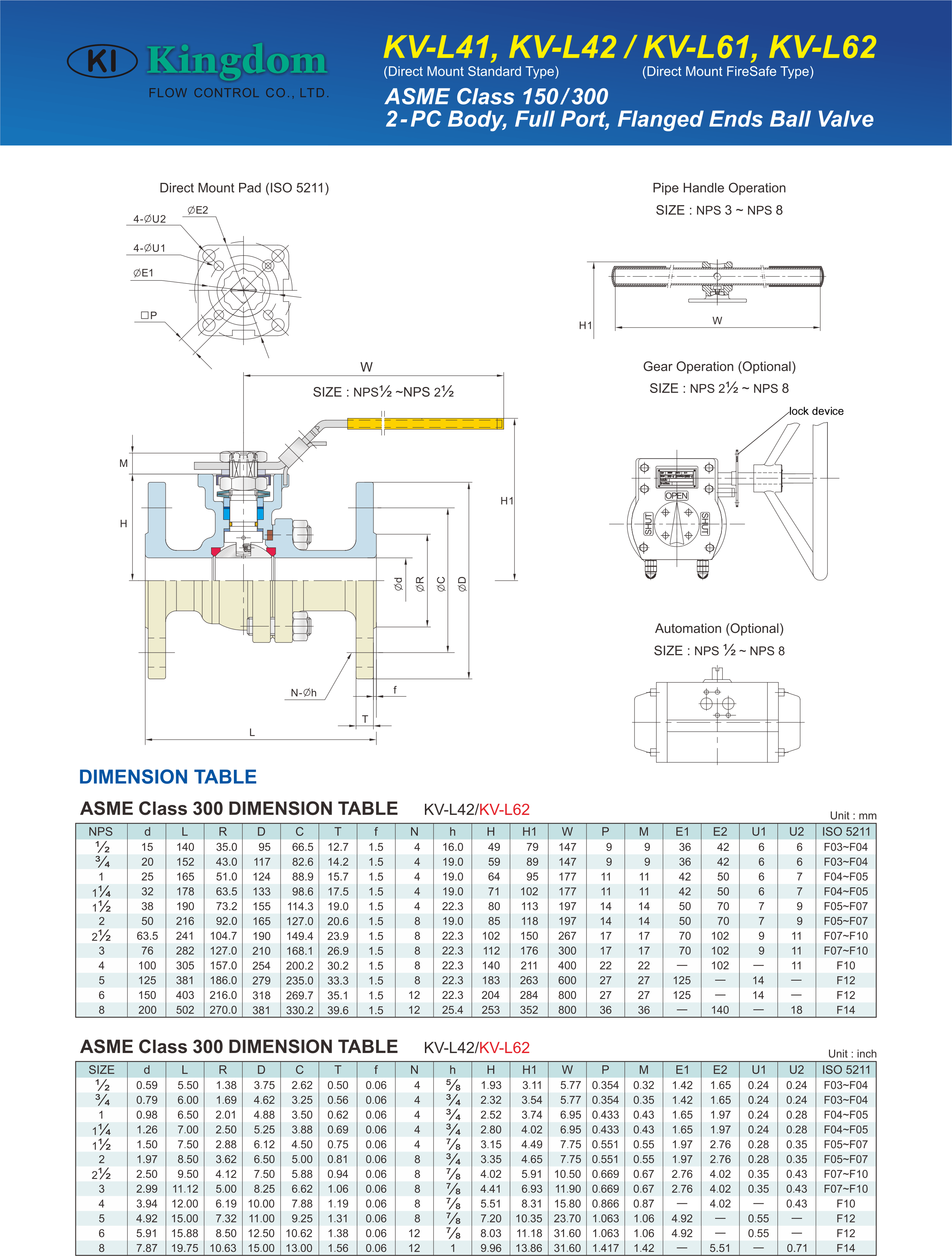

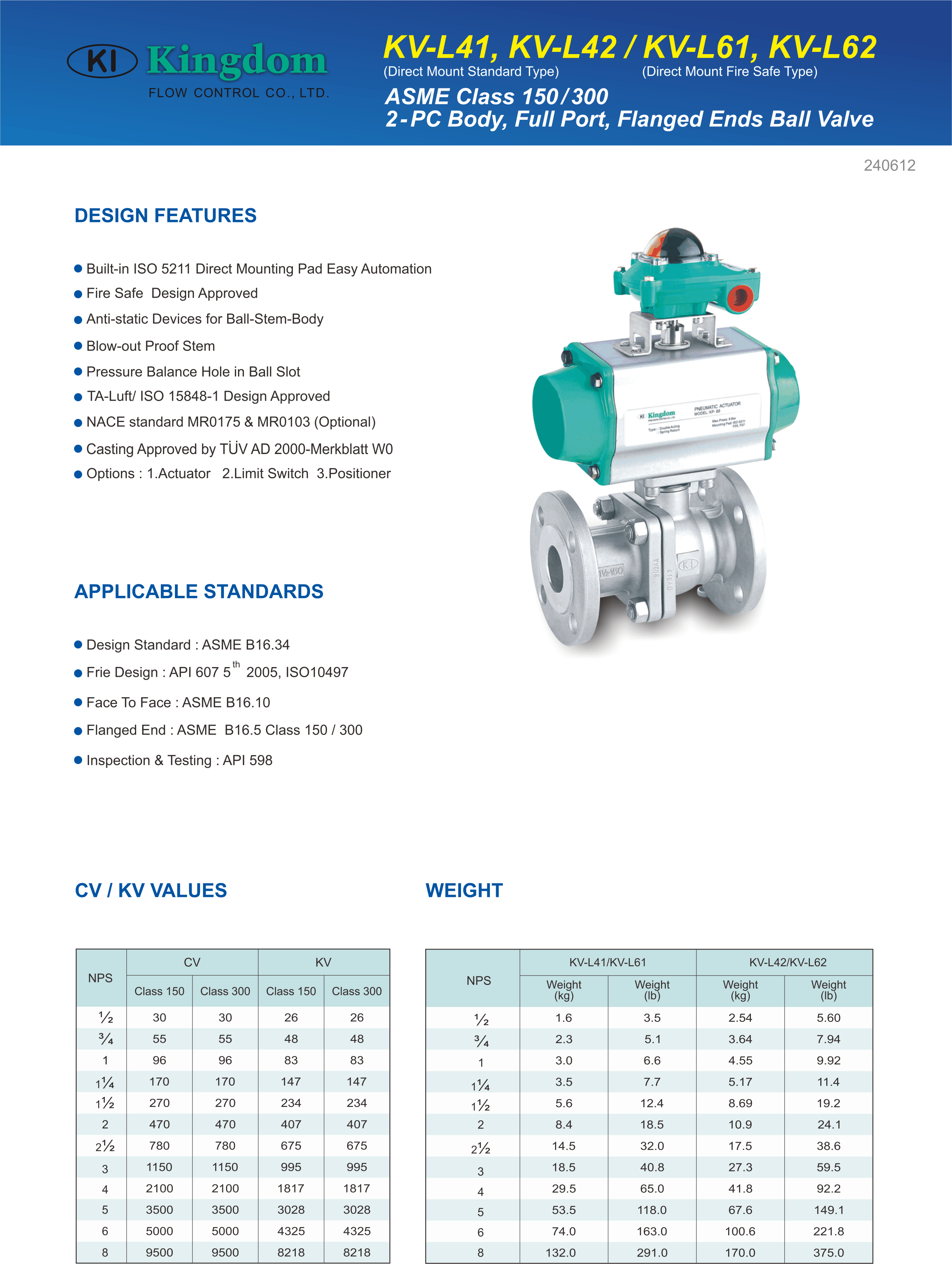

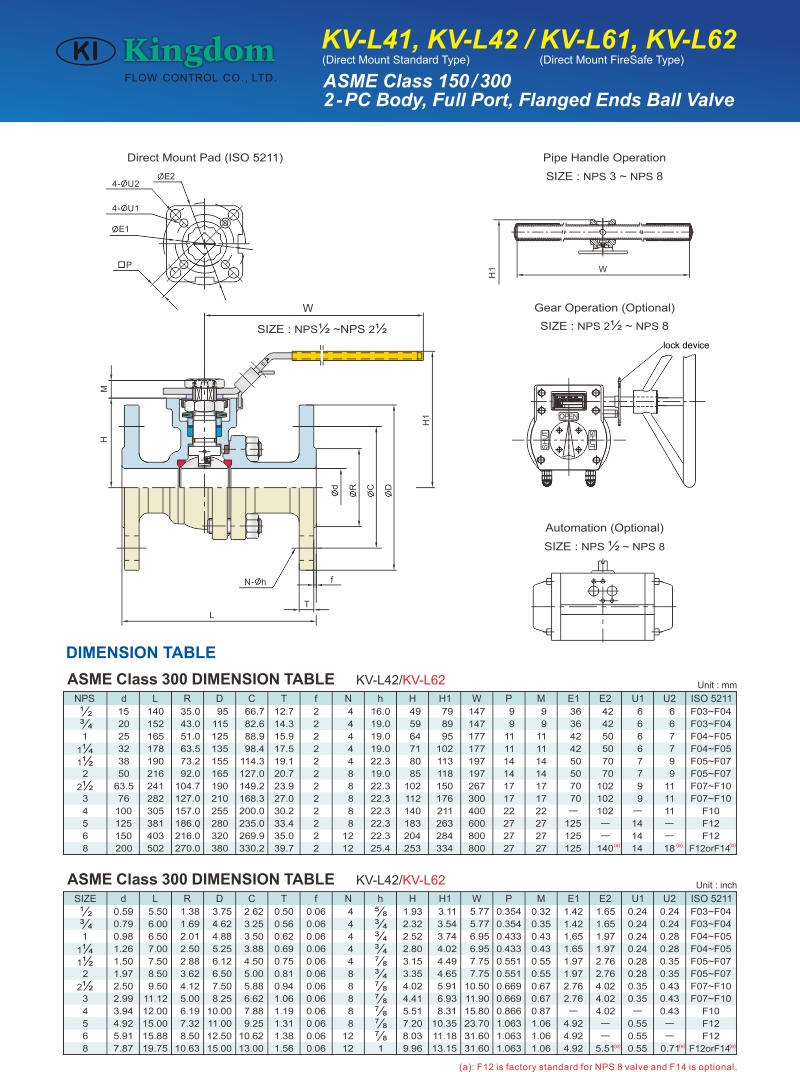

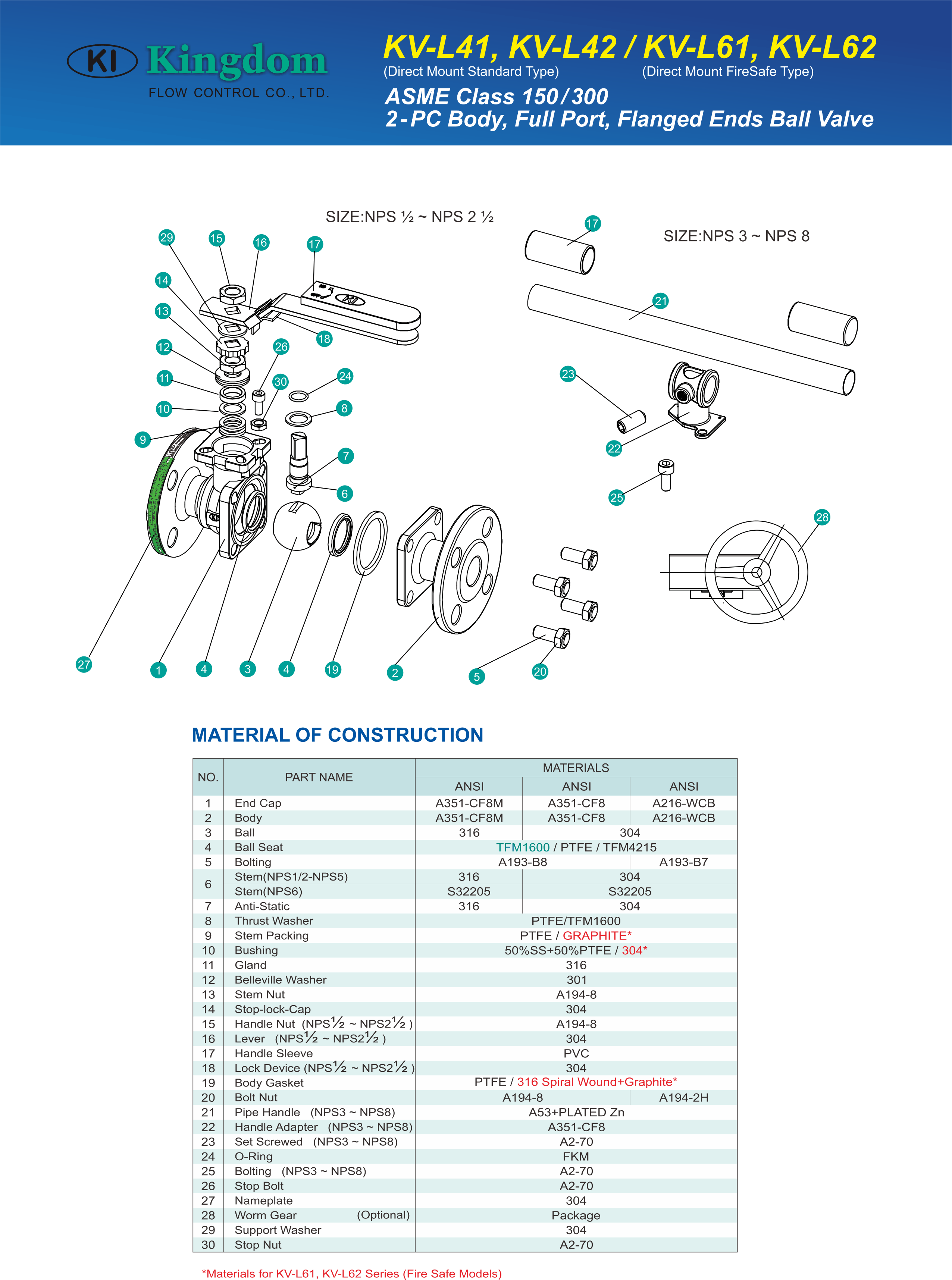

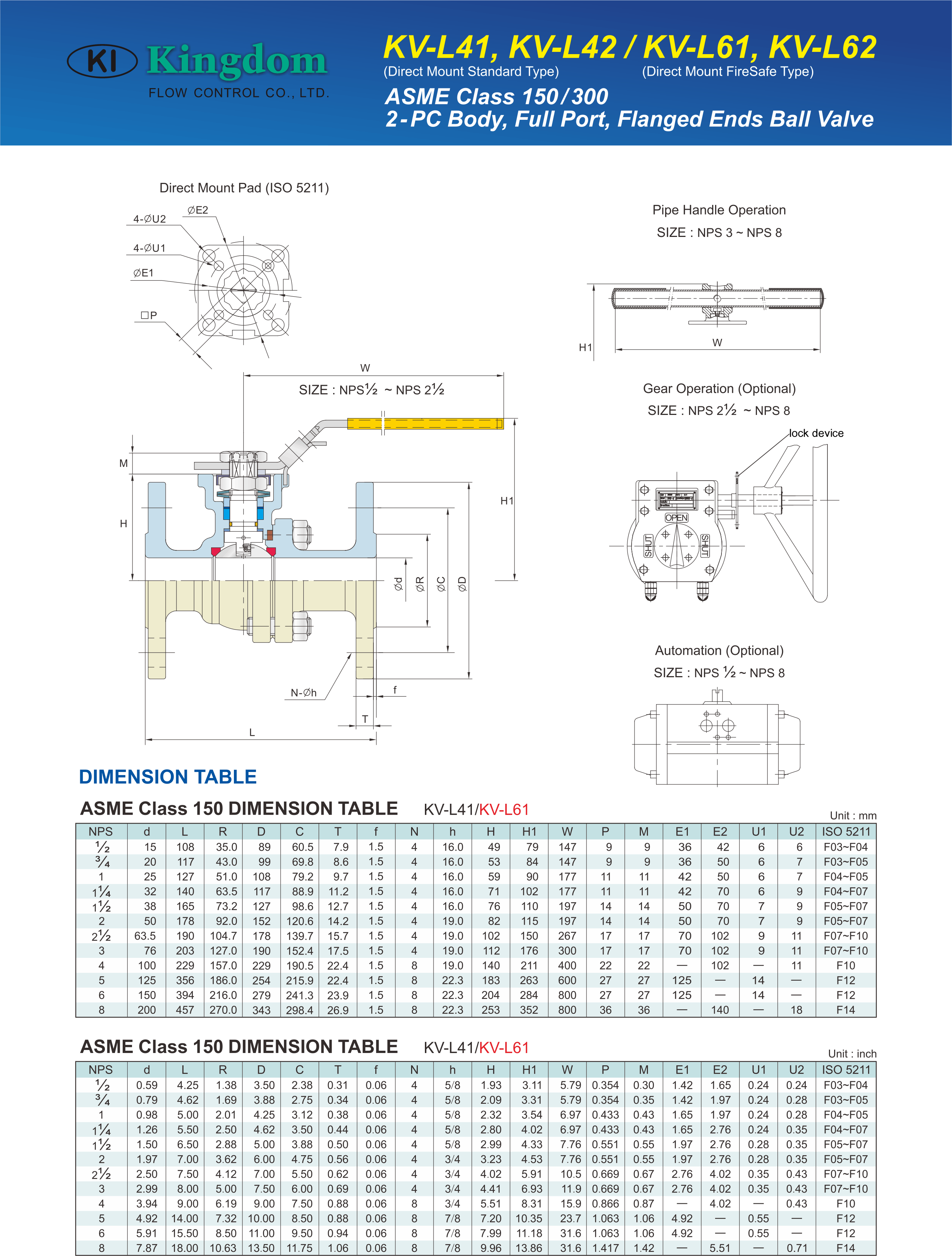

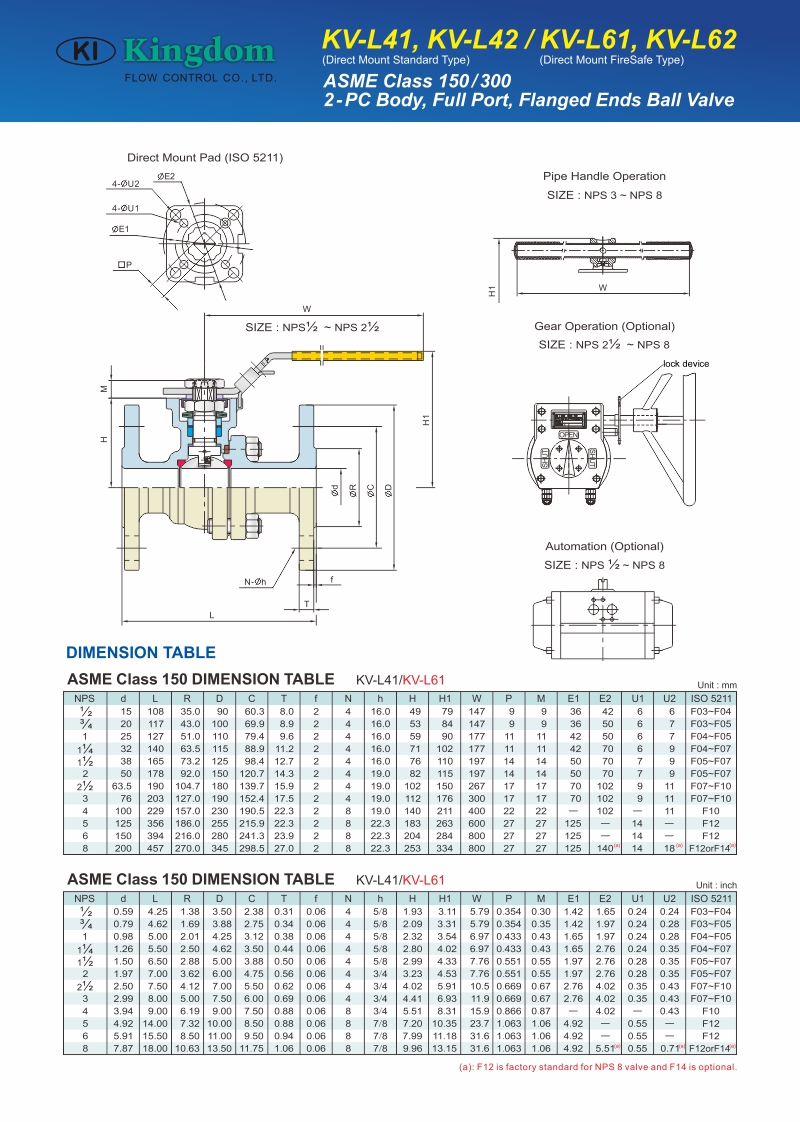

ASME Class 150-300 (Direct Mount)
We believe in Simple & CreativeASME Class 150-300 (Direct Mount)

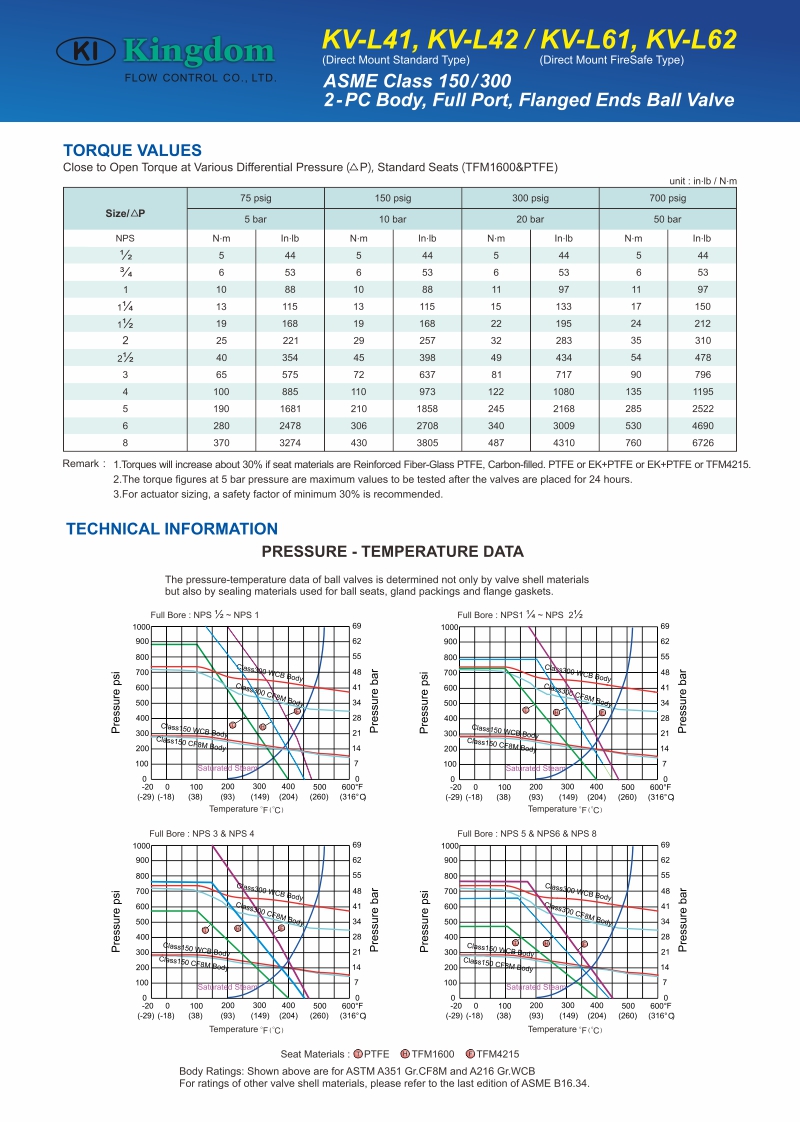

KV-L41,L42 (Direct Mount Type)
KV-L61,L62 (Direct Mount Type / Fire Safe Type)
ASME Class 150/300
2 PC Body, Flanged Ends, Full Port
- 150# (L41 / L61) & 300# (L42 / L62)
- Full Port ISO 5211 Pad for Direct Actuation
- TFM 1600 Seats
- Size 1/2” ~ 8”
- TA-Luft approved
