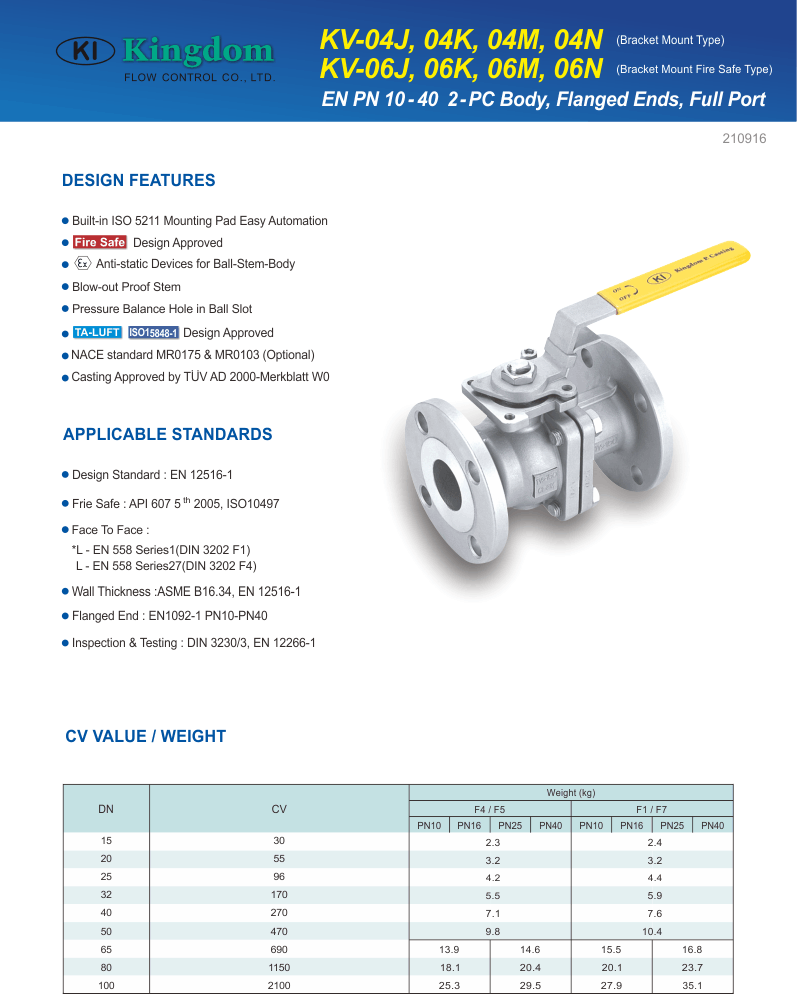

EN PN 10-40 (Bracket Mount)
We believe in Simple & CreativeEN PN 10-40 (Bracket Mount)
KV-04J,04K,04M,04N (Bracket Mount Type)
KV-06J,06K,06M,06N (Bracket Mount Type/Fire Safe Type)
EN PN 10-40
2-PC Body, Flanged Ends, Full Port
- PN10 (04J / 06J), PN16 (04K / 06K), PN25 (04M / 06M), PN40 (04N / 06N)
- Full Port ISO 5211 Mounting Pad
- TFM 1600 Seats
- Size DN15- 100
- TA-luft approval
