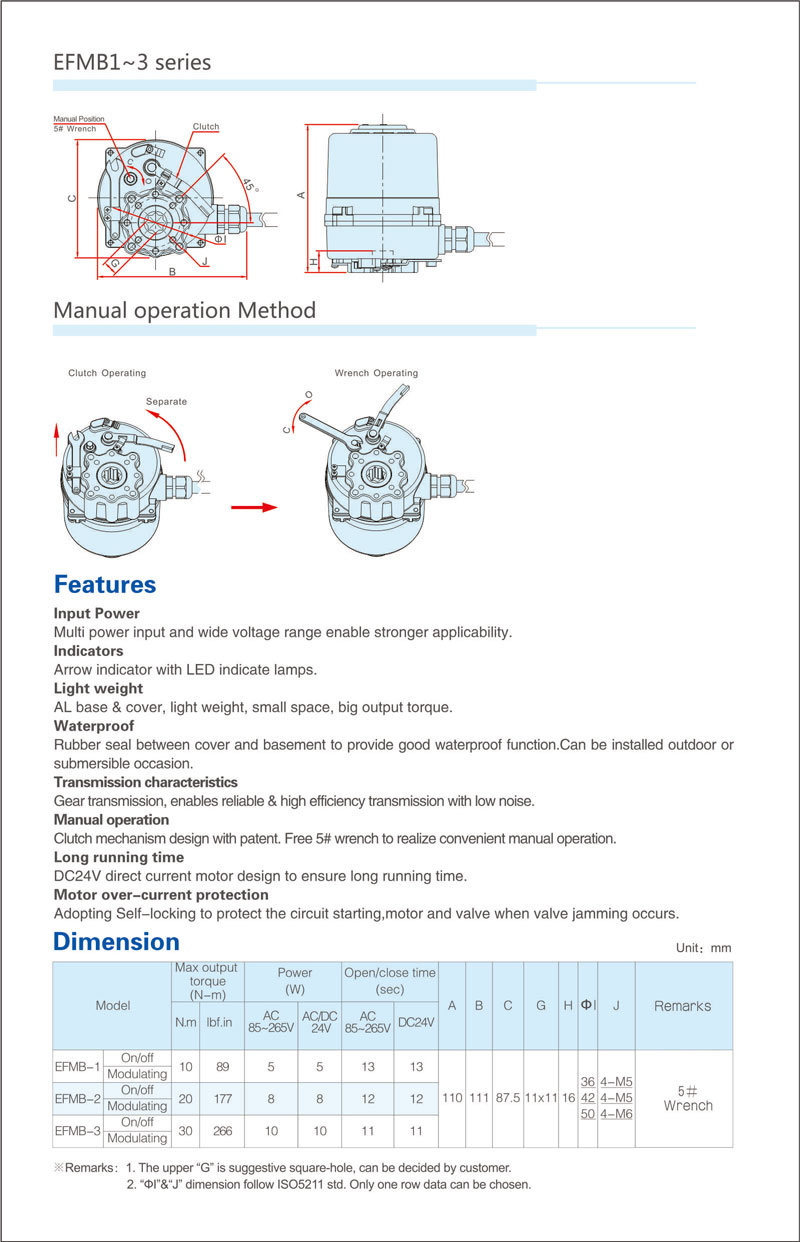

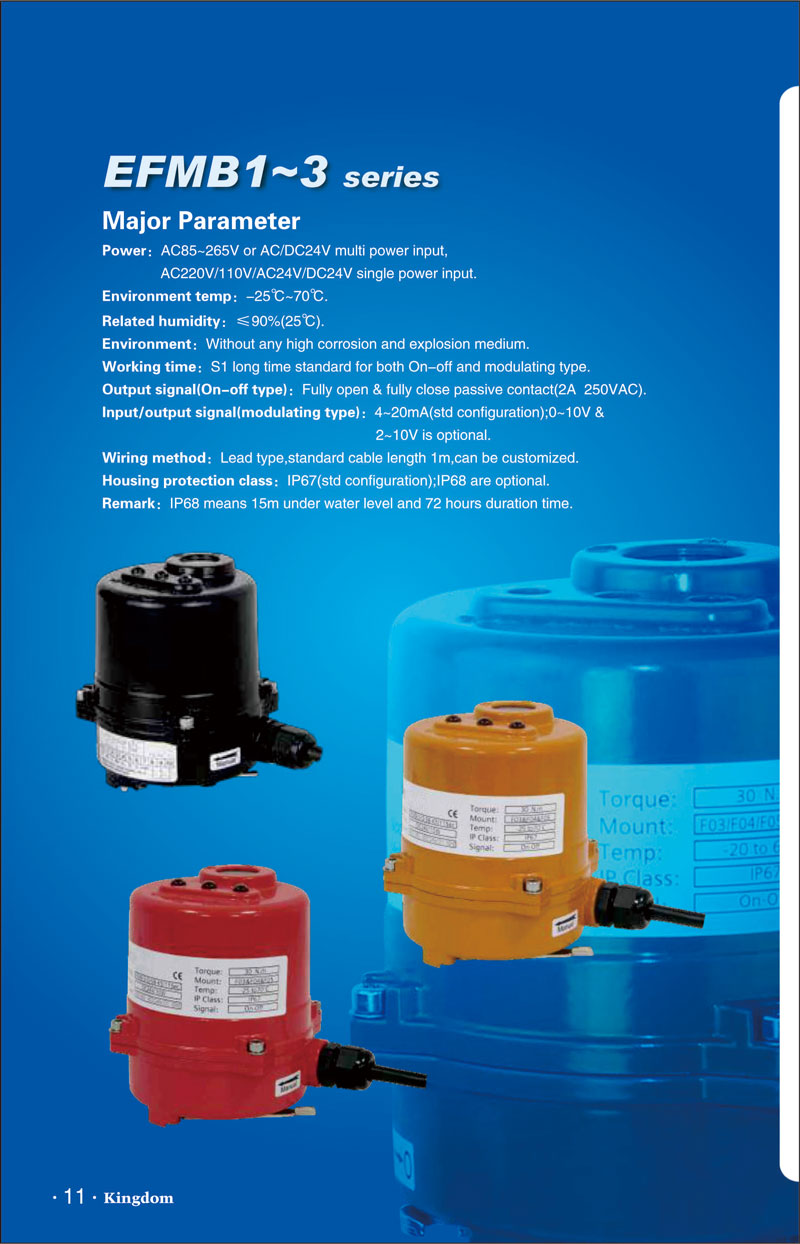

EFMB1~3 series

• Power : AC85~265V or AC/DC24V multi power input.

                            AC220V / 110V / AC24V single power input.

• Environment temp : -25℃ ~ 70℃
• Related humidity : ≤90% (25℃)
• Environment : Without any high corrosion and explosion medium.
• Working time : S1 long time standard for both On-off and modulating type.
• Output signal (On-off type) : Folly open & fully close passive contact (2A 250VAC).
• Input / output signal (modulating type) : 4-20mA (std configuration) ; 0~10V & 2-10V is optional.
• Wiring method : Lead type standard cable length 1m, can be customized.
• Housing protection class : IP67 (std configuration) ; IP68 are optional.
• Remark : IP68 means 15m under water level and 72 hours duration time.
